Amorphous Graphite Materials
Microcrystalline graphite engineered for lubrication, coatings, and cost-effective industrial performance.
Amorphous graphite, more accurately described as microcrystalline or cryptocrystalline graphite, is a naturally occurring form of graphite composed of extremely fine crystals that are not visible to the naked eye or standard optical microscopy. While the term “amorphous” is technically a misnomer, it remains the accepted industry designation for this dense, soft, and lubricious graphite material widely used in industrial applications.
Amorphous Graphite

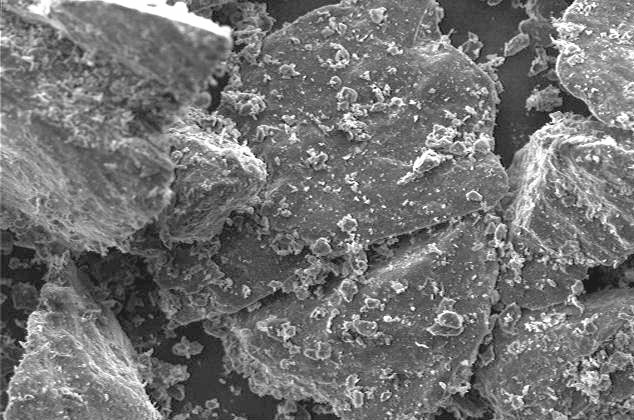

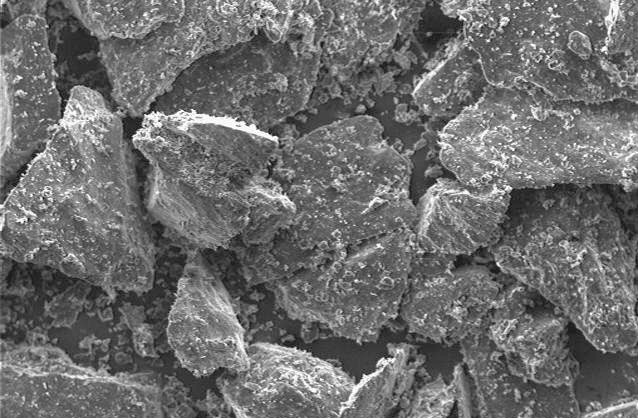

Amorphous graphite powder is characterized by its massive, non-platy morphology and fine microcrystalline structure. To the untrained eye, it may resemble anthracite coal, but it is significantly denser, softer, and more lubricious. Unlike flake or vein graphite, amorphous graphite does not display visible crystal faces and exhibits limited long-range crystallographic order.
Geologically, amorphous graphite forms from the metamorphism of anthracite coal seams rather than from primary igneous or high-grade regional metamorphic processes. It is classified as a seam graphite and is commonly associated with coal-bearing formations. As one of the experienced amorphous graphite suppliers serving industrial applications, Asbury provides amorphous graphite materials designed to support performance where lubricity, carbon content, and fine particle morphology are important.
Properties
Major Natural Amorphous Graphite Properties
Amorphous graphite offers a distinct performance profile that makes it well suited for applications where cost efficiency, lubrication, and controlled abrasion are required.
- Microcrystalline structure with extremely fine graphite domains
- Good lubricity despite lower graphitic order
- High chemical stability
- Electrical conductivity suitable for industrial uses
- Low reflectivity, producing a deep black appearance
- Higher ash content compared to flake and vein graphite
- Lower cost relative to other natural graphite types
- Available particle sizes from large lumps to fine powders (~3 microns)
Applications
Amorphous Graphite Applications
Amorphous graphite is widely used in applications where higher ash levels are acceptable or beneficia, and where lubrication, dark coloration, or mild abrasion are required.
Forging
Supports die lubrication and metal release while tolerating high temperatures and surface contact.
Coatings
Preferred for applications requiring low reflectivity and deep black coloration.
Seals & Gaskets
Corrects the balance between lubrication and mild abrasion in mechanical seal applications.
Friction Products
Commonly used in friction products due to its low carbon content, and electrical and thermal conductivity.
Lubricants & Greases
Commonly used in greases for metalworking compounds to provide solid lubrication under load. Used where cost efficiency and lubricity outweigh the need for ultra-high purity graphite.
How It Works
Geologic Formation of Amorphous Graphite

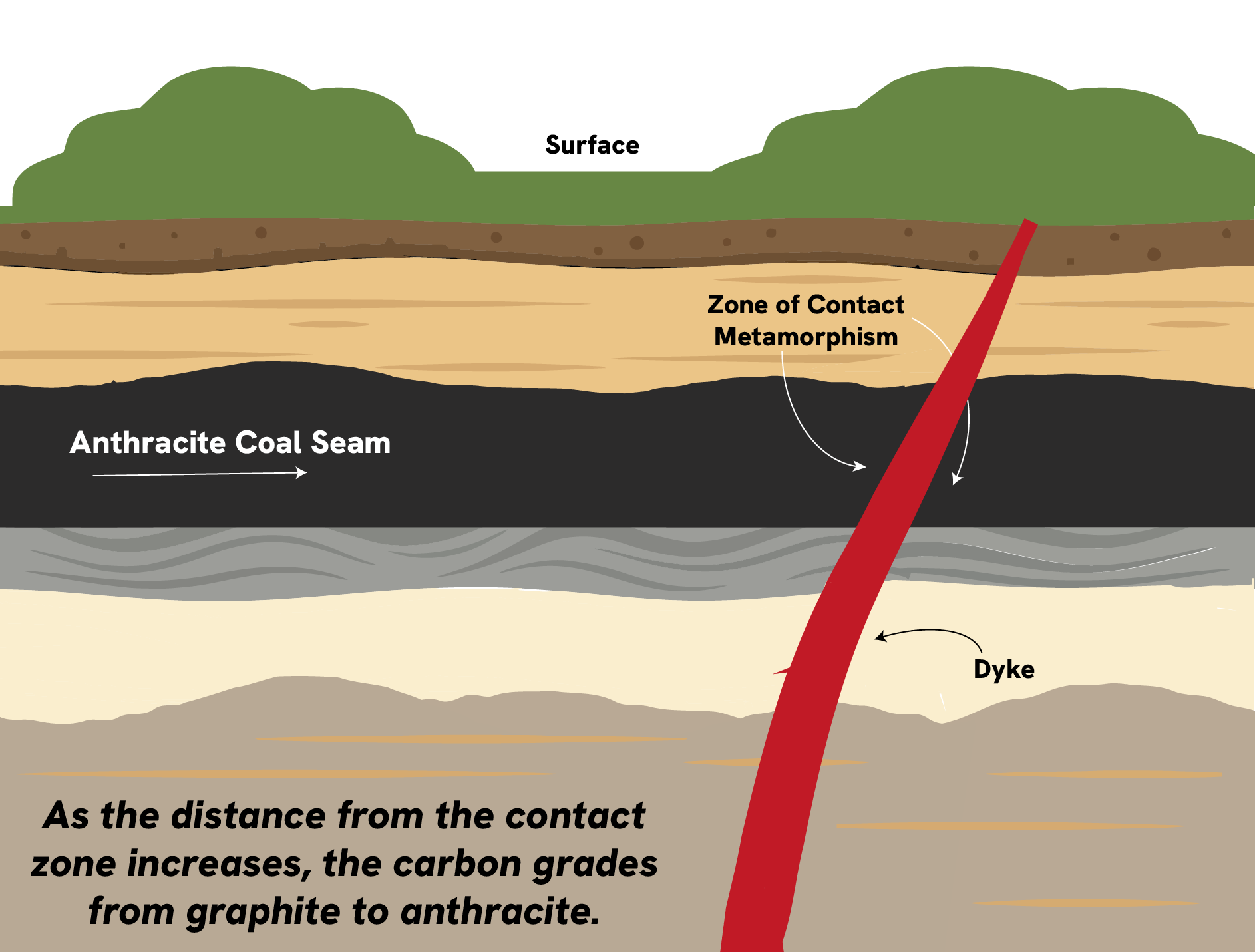

Amorphous graphite forms through low-grade metamorphism of anthracite coal seams. This process often occurs through contact metamorphism, where localized heat and pressure from magma intrusions (such as dikes or plutons) convert coal into microcrystalline graphite. In some regions, amorphous graphite deposits occur adjacent to anthracite seams, indicating localized or regional metamorphic influence.
Structure & Graphitization
Among natural graphite types, amorphous graphite exhibits the lowest degree of graphitization, typically showing only 20–40% graphitic order by X-ray diffraction. The absence of visible crystal faces and limited long-range order distinguish it from flake and vein graphite.
Mining & Processing
Amorphous graphite is extracted using conventional coal-type mining methods. Due to the intimate association between graphite microcrystals and mineral ash, traditional beneficiation techniques such as froth flotation are largely ineffective. As a result, amorphous graphite typically remains lower in purity than other natural graphite types.
Purity & Availability
Commercial amorphous graphite grades generally range from 75–85% carbon, with particle sizes available from large lumps to micronized powders. Its darker color, lubricity, conductivity, and cost advantages make it attractive for high-volume industrial applications.
WHY ASBURY
Your Global Supply Partner of Natural Amorphous Graphite
Asbury Advanced Materials offers hundreds of amorphous graphite grades categorized by particle size and purity. With more than a century of experience in graphite grinding, sizing, and customization, Asbury provides tailored amorphous graphite solutions to meet specific application requirements.
Decades of Materials Expertise
Deep experience across carbon, graphite, and specialty materials—supporting complex, real-world applications.
Technical & Manufacturing Depth
Knowledgeable teams who understand material behavior, processing requirements, and application constraints.
Consistency, Quality & Control
Reliable materials processed to meet demanding specifications, batch after batch.
Global Reach & Supply Reliability
A diversified sourcing and distribution network designed to support customers wherever they operate.
